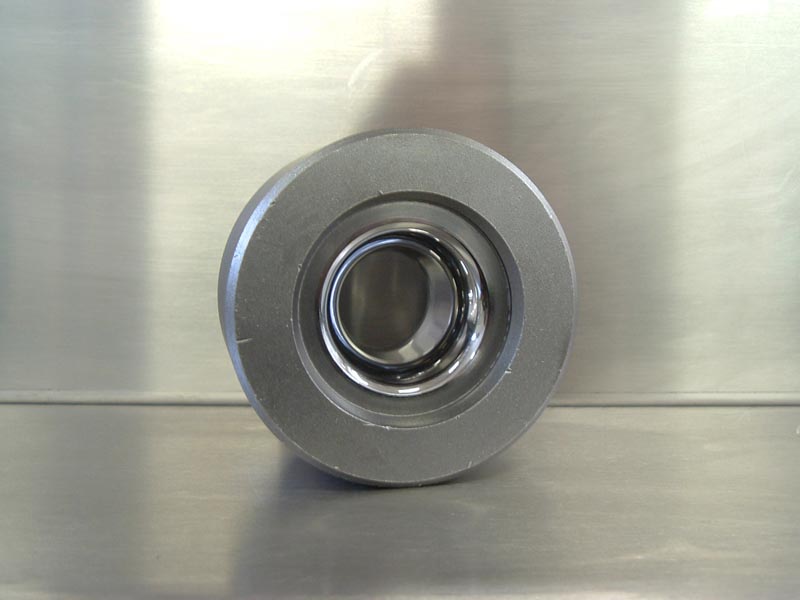

Hard Metal Drawing Dies

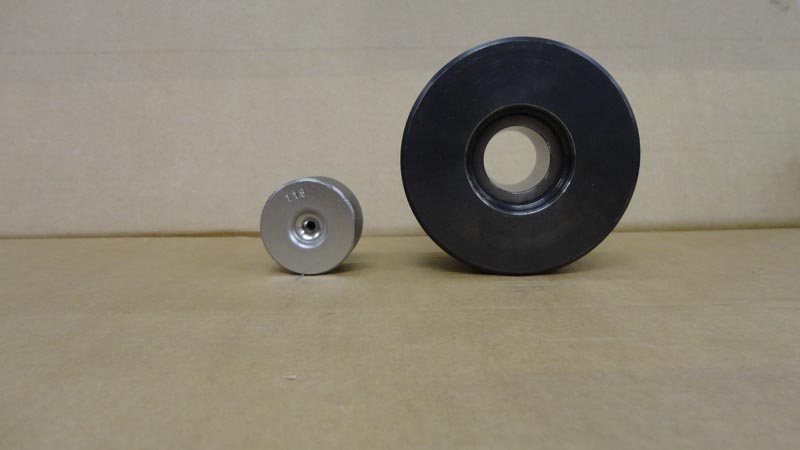

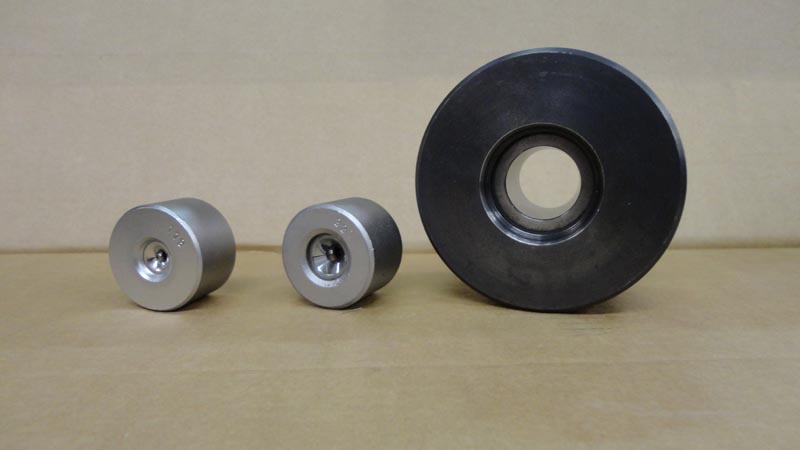

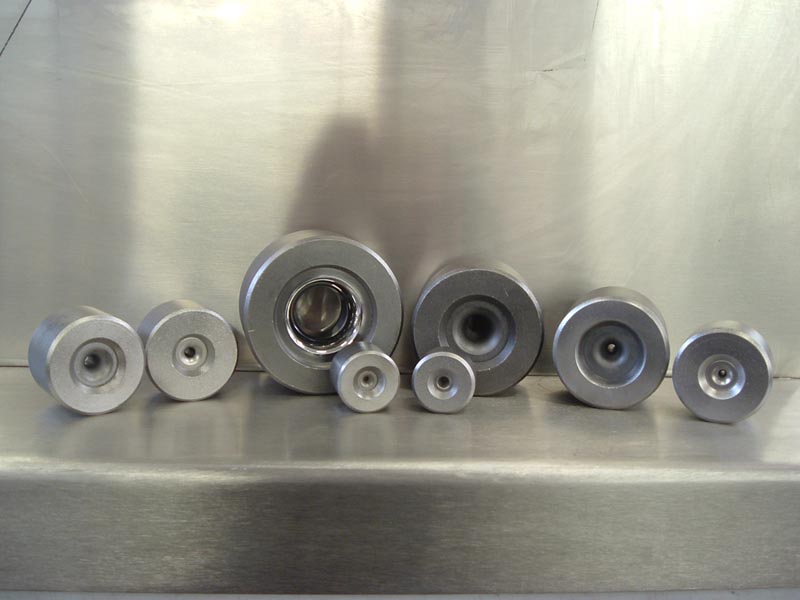

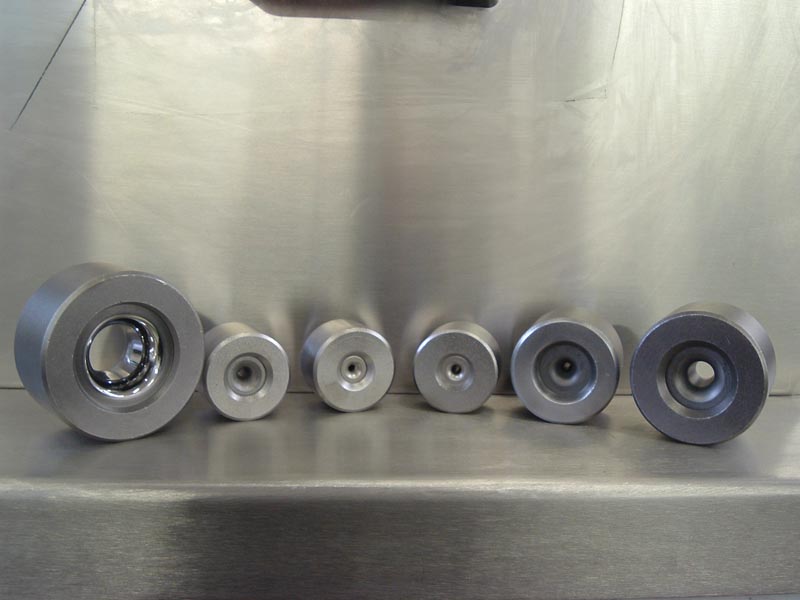

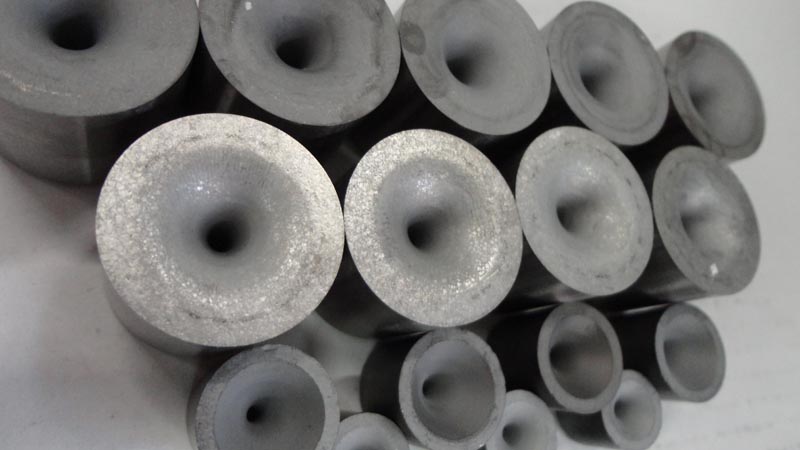

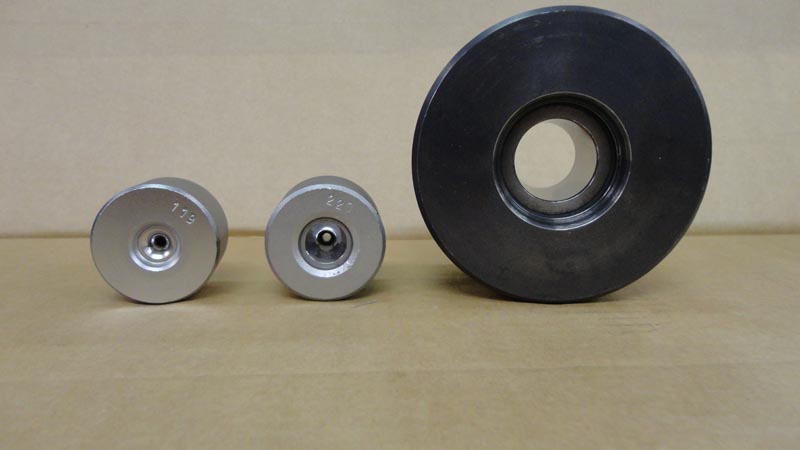

They are dies made of tungsten carbide drawing dies used in the wire drawing of low, medium and high carbon content wire and in the drawing of aluminum, copper and various alloys. These drawing dies, with a range of diameters from 0.20 mm to 30 mm can also be supplied with rough hole.

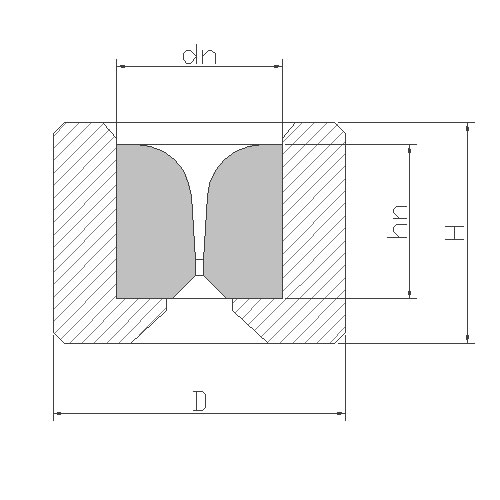

Size | Casing (D x H) | Nib (dn x hn) |
---|---|---|
I | 28 x 15 mm | 9 x 6 mm |
I | 28 x 15 mm | 9 x 8 mm |
I | 28 x 15 mm | 10 x 8 mm |
II | 43 x 27 mm | 12 x 10 mm |
II | 43 x 27 mm | 14 x 13 mm |
II | 43 x 27 mm | 15 x 14 mm |
II | 43 x 27 mm | 16 x 13 mm |
III | 43 x 30 mm | 20 x 18 mm |
IV | 53 x 40 mm | 25 x 20 mm |
V | 63 x 40 mm | 30 x 24 mm |
V | 63 x 40 mm | 30 x 28 mm |
V | 63 x 45 mm | 30 x 28 mm |
VI | 80 x 40 mm | 35 x 24 mm |
VII | 80 x 40 mm | 40 x 24 mm |
VII | 100 x 50 mm | 40 x 24 mm |
VIII | 100 x 40 mm | 45 x 25 mm |
VIII | 100 x 50 mm | 45 x 25 mm |
We also produce non-standard wires based on sample or drawing.
